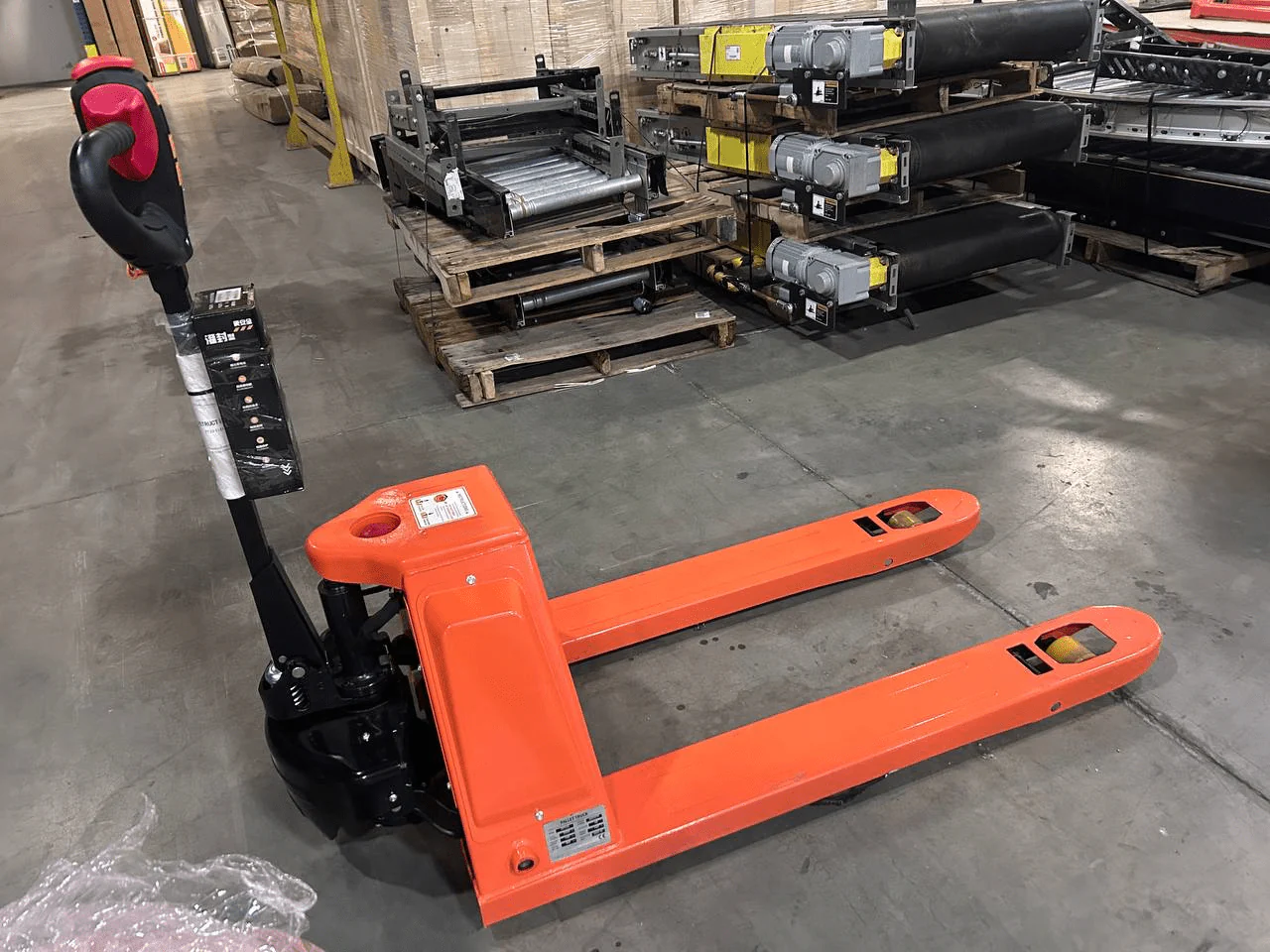

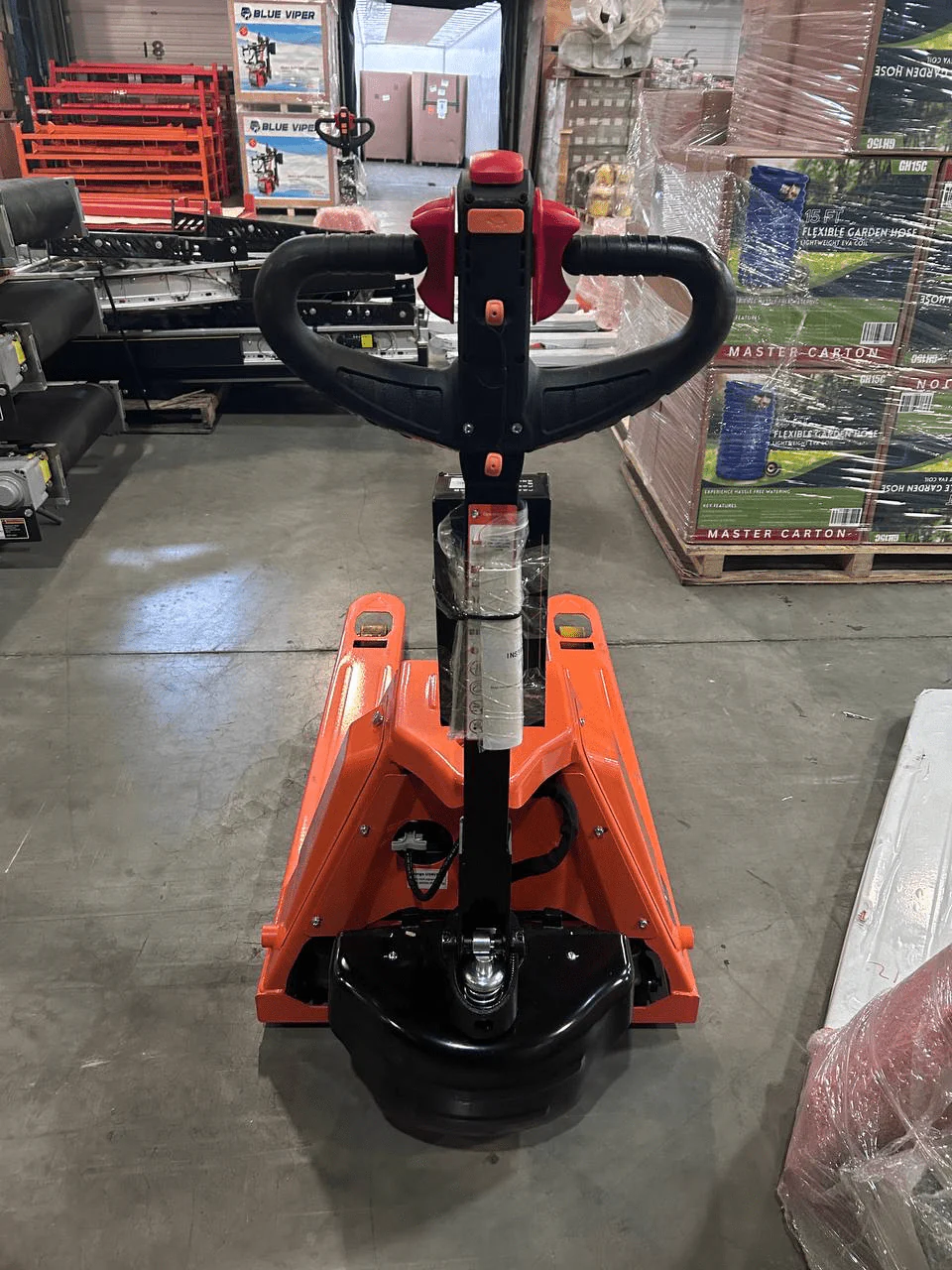

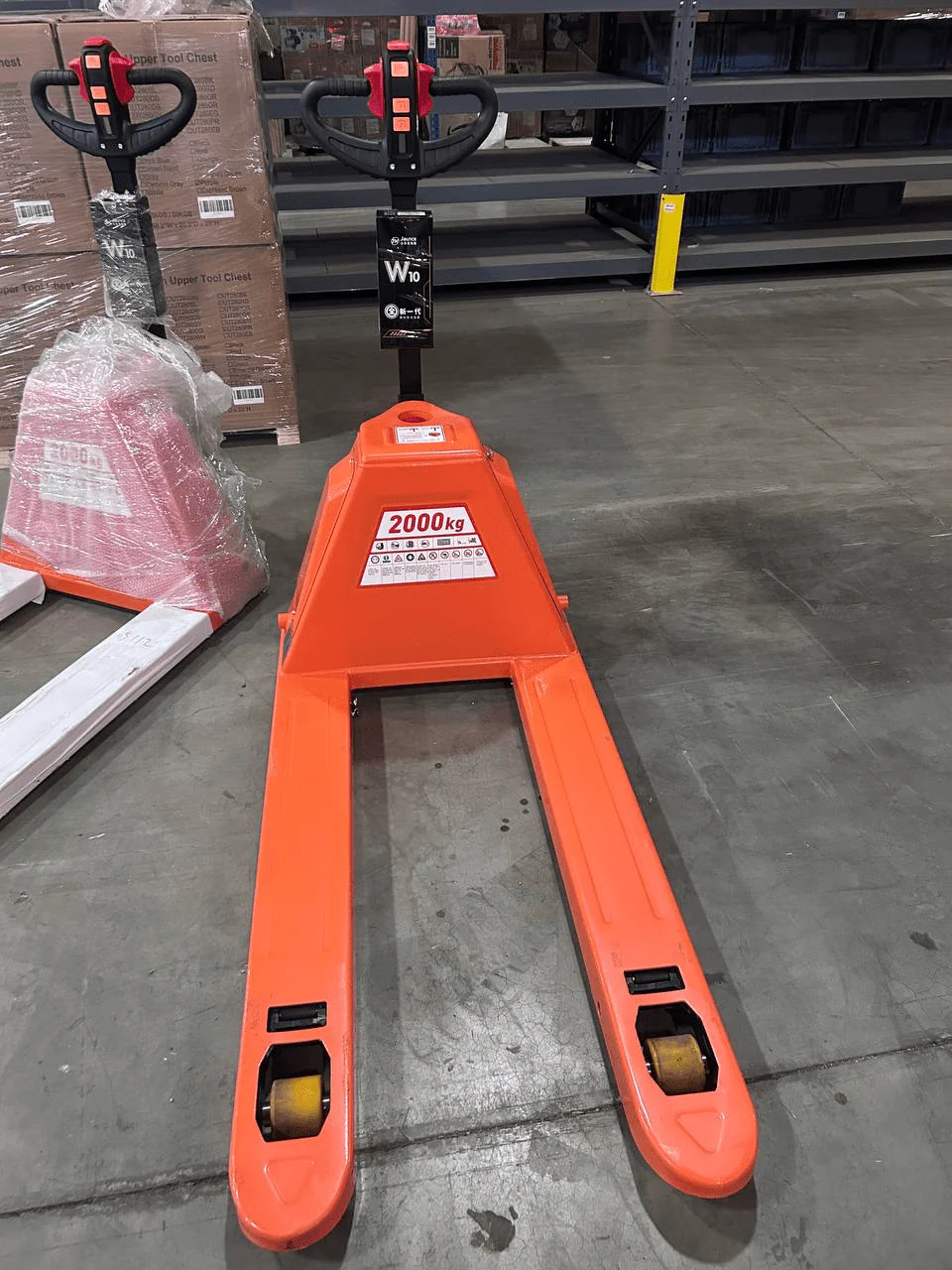

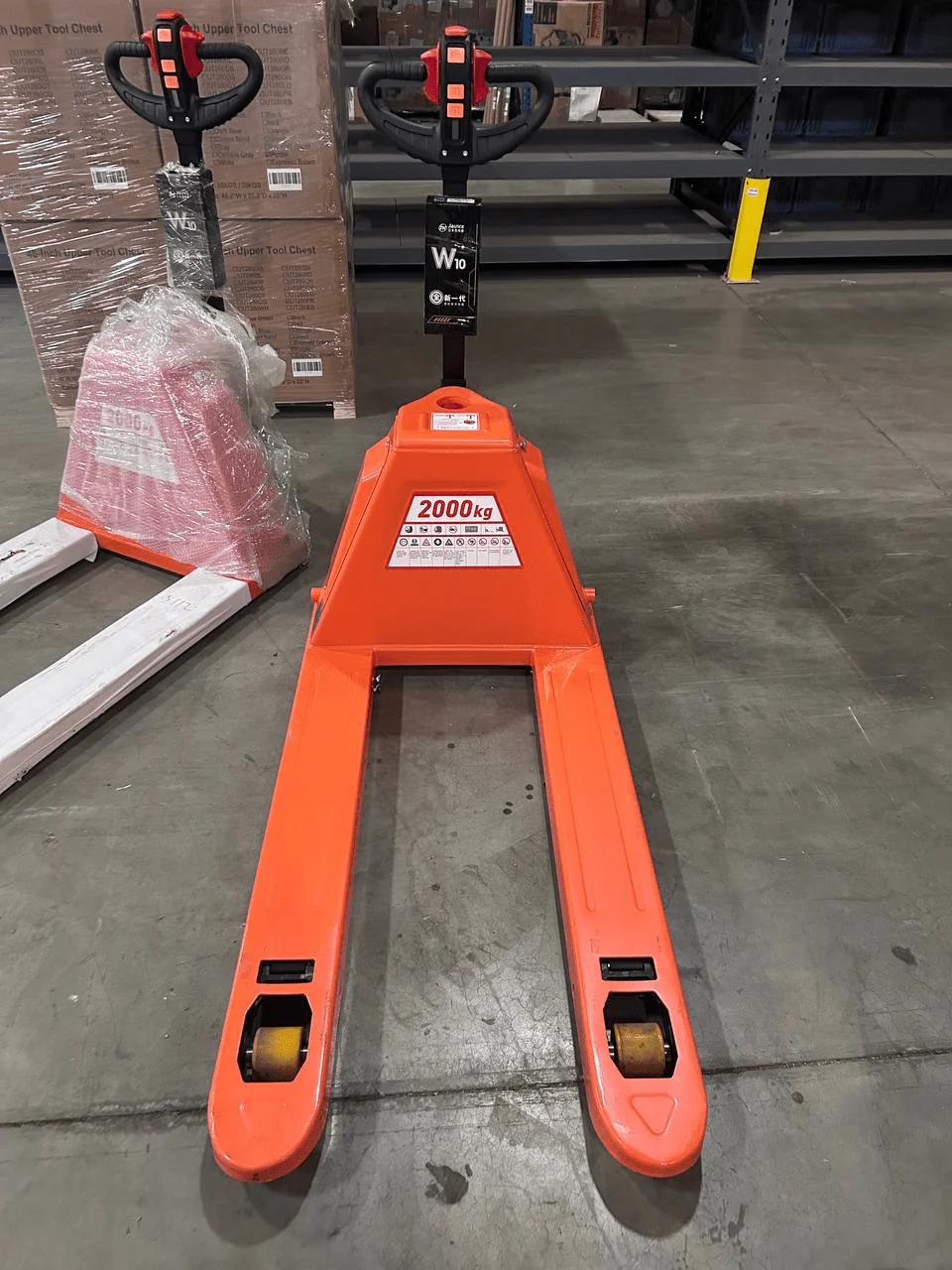

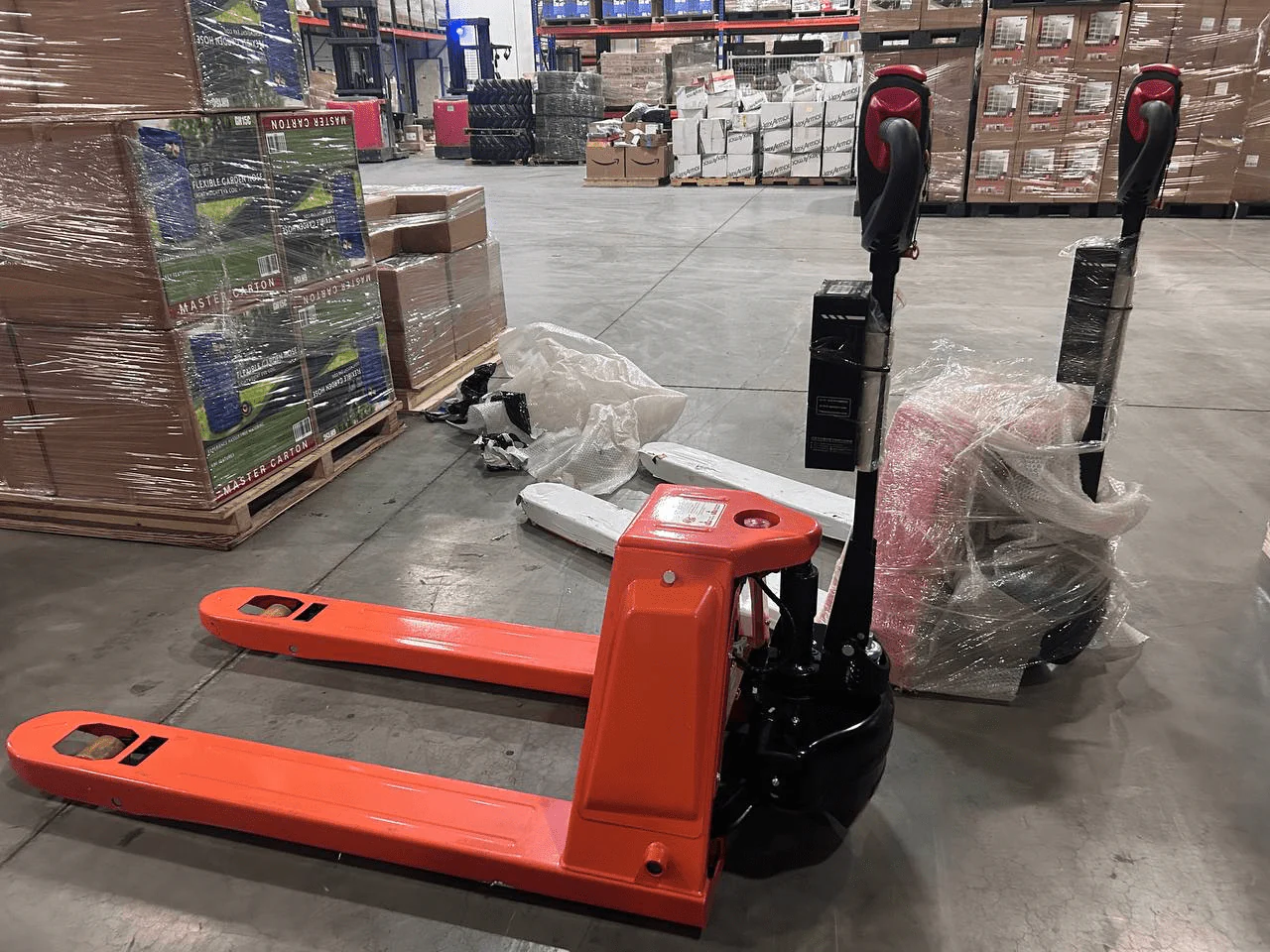

This full electric pallet truck is designed for efficient material handling in warehouses, distribution centers, and industrial facilities. With a 2000 kg (4,400 lb) rated capacity and 685 mm fork spacing, it is ideal for handling standard pallets with stability and precision.

Powered by a 48V electric system with brushless drive motor and electromagnetic braking, this walkie-style pallet jack delivers smooth operation, low noise, and reliable performance during extended work cycles.

Key Features

• 2000 kg / 4,400 lb Rated Capacity

• 685 mm Fork Outside Width – Fits standard pallets

• Full Electric Drive & Lift

• Walkie-Style Operation for tight warehouse aisles

• Brushless DC Drive Motor for efficiency and durability

• Electromagnetic Braking System for safe operation

• Low Noise Design (≤70 dB)

• PU Wheels for smooth indoor movement

Specifications

• Operation Type: Walkie style

• Rated Capacity: 2000 kg (4,400 lb)

• Load Center Distance: 500 mm

• Fork Outside Distance: 27 in (685 mm)

• Fork Size: 0.24 × 6.3 × 45.3 in (6 × 160 × 1150 mm)

• Lift Height: 4.1 in (105 mm)

• Lowered Fork Height: 3.2 in (82 ± 2 mm)

• Overall Length: 63.8 in (1620 mm)

• Turning Radius: 58.3 in (1480 mm)

• Driving Speed (Laden/Unladen): 2.5 / 2.8 mph (4 / 4.5 km/h)

• Lifting Speed (Laden/Unladen): 20 / 25 mm/s

• Lowering Speed (Laden/Unladen): 56 / 46 mm/s

• Wheel Material: PU

• Drive Motor: DC 48V / 1.0 kW (Brushless)

• Pump Motor: DC 48V / 0.8 kW

• Battery: 48V 25Ah lead-acid

• Continuous Work Time: ≥4 hours

• Noise Level: ≤70 dB

In The Box

• Full electric pallet truck (685 mm fork width)

• Integrated battery system

• Built-in charger

• Operator controls

Ideal For

• Warehouses

• Distribution centers

• Manufacturing facilities

• Retail backrooms

• Palletized material handling
